    HDPE Geocell Gravel Soil Stabilizer Parking Lot Plastic Honeycomb Grid Grass Paver Grid for Driveway Concrete Road

    Ask Lasest Price
    Brand Name : zhongloo
    Model Number : HDPE Geocell
    Certification : ISO,SGS,TUV,BV
    Price : Can be discussed
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
    Supply Ability : 20000 sqm/Day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    HDPE Geocell Gravel Soil Stabilizer Parking Lot Plastic Honeycomb Grid Grass Paver Grid for Driveway Concrete Road

    HDPE Geocell Description

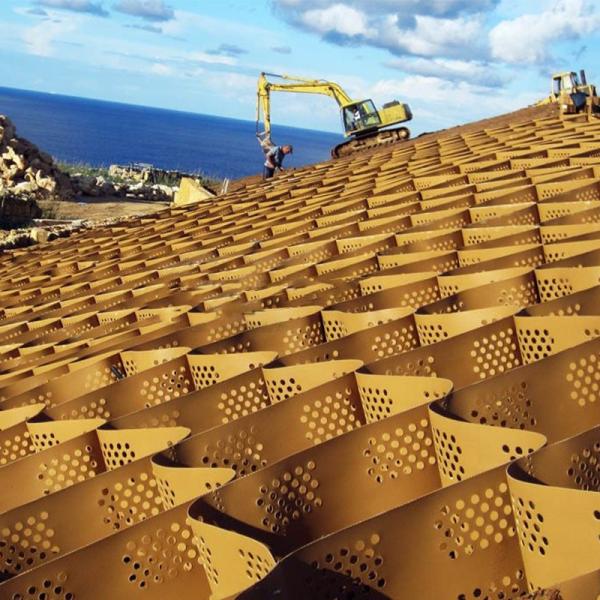

    HDPE Geocell is a high performance three dimensional cellular confinement system. Filled with granular material, such as soil,rock.We can provides superior confinement and reinforcement for load support, erosion control, and slope renforcement applications. Our HDPE Geocell is manufactured from extruded strips of HDPE that are precision welded to form multiple cell heights and sizes.
    HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
    1.HDPE Geocell Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
    2. HDPE Geocell Welding space: 330mm~1600mm
    3. HDPE Geocell Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
    4. HDPE Geocell Appearance: smooth / textured
    HDPE plastic honeycomb hdpe geocell gravel grid Features:
    1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, hdpe geocell applicable to different soil and desert and other geological conditions .
    2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
    3)High carrying capacity and good dynamic performance and high erosion ability .
    4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
    5)Retractable and small loading volume , convenient joint , speed construction .
    6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
    HDPE Geocell Type
    Smooth and Not Perforated
    Smooth and Perforated
    Textured and Not Perforated
    Textured and Perforated
    Height (mm)
    50≤H≤250
    50≤H≤250
    50≤H≤250
    50≤H≤250
    Welding Distance(mm)
    330≤A≤1000
    330≤A≤1000
    330≤A≤1000
    330≤A≤1000
    Thickness (mm)
    1.0- 1.2
    1.0- 1.2
    1.4- 1.7
    1.4- 1.7
    Seam Peel Strength of Welding Point (N/cm)
    ≥100
    ≥100
    ≥100
    ≥100
    Tensile Strength of Connection of Cells (N/cm)
    ≥120
    ≥120
    ≥120
    ≥120
    Tensile Strength at Yield of Each Sheet (N/cm)
    ≥200
    ≥200
    ≥200
    ≥200
    Summer Meng:86-18056028960
