Brand Name : | OEM |
Certification : | ISO9001 |
Price : | US $0.80-3.6 / Square Meter |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 20000 Square Maters/ Day |
Delivery Time : | 7-12 working days |
Description:
Composite geomembrane is a kind of impervious material compounded of geotextile and geomembrane.
It has many types: one textile one membrane, two textiles one
membrane, many textiles many membranes and so on. Composite
geomembrane is mainly used for drainage and reinforcement, has the
advantages of acid and alkali-resistance, good
infiltration-resistance, pull-resistance, tearing-resistance, hi
-bursting strength and so on,mainly for waterpfoor purpose.
Composite Geomembrane Liner provides the advantages of both geotextiles and geomembranes. The
geotextile layer increases essential tensile strength and the
geomembranes provides excellent impermeable, leak, moisture proof
and tear and puncture resistance.The main role a composite
geomembrane liner has for a municipal solid waste system for
landfills is that is reduces the amount of leakage through small
seep holes that sometimes form in the Geomembrane part of the

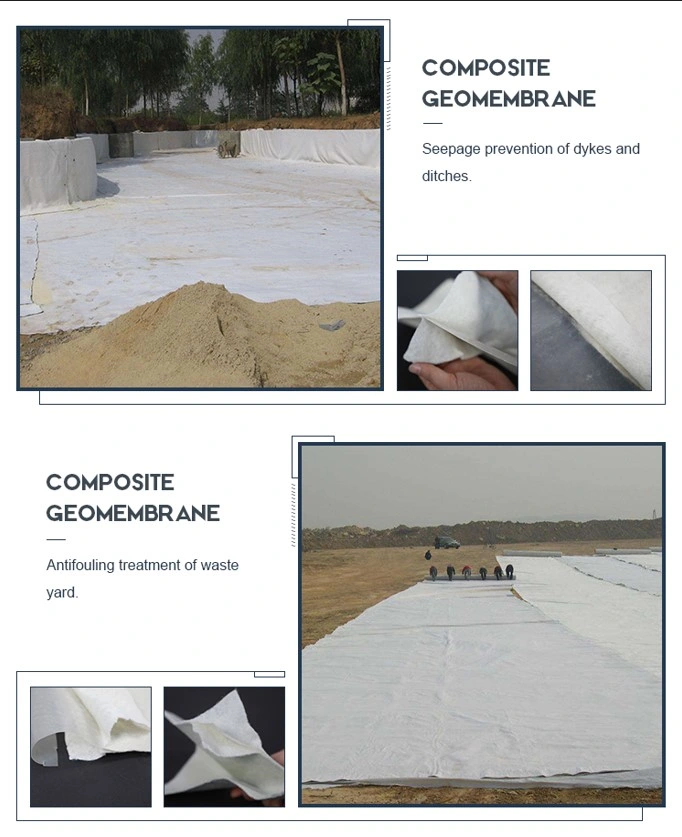

geocomposite liner. Our composite geomembrane liner is widely used
for landfills, waste water treatment, roads construction,
aquaculture, landscape and agriculture, etc
Composite Geomembrane Liner is made by heat-bonding nonwoven or woven geotextile combined with
HDPE geomembranes by calendaring processing technology. composite
geomembrane liner is automatically formed by pressing one or two
geotextile layer to the geomembrane layer in the continuous far
infrared ray heating oven, polymer and anti-aging materials are
added in the production process at the same time, so it can be used
in unconventional temperature environment.
The composite geomembrane liner provides the advantages of both geotextiles and geomembranes. The geotextile layer increases essential tensile strength and the geomembranes provides excellent impermeable, leak, moisture proof and tear and puncture resistance. Our composite geomembrane liner are widely used for landfills, waste water treatment, roads construction, aquaculture, landscape and agriculture, etc.
Technical Parameters of compound geomembrane | ||||||||
Product weight G/M2 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
SPEC | 1 layer geotextile +1 layer membrane | 150/0.25 | 200/0.3 | 300/0.3 | 300/0.4 | 300/0.5 | 400/0.5 | 400/0.6 |
2 layer geotextile +1 layer membrane | 100/0.2/100 | 100/0.3/100 | 150/0.3/150 | 200/0.3/200 | 200/0.4/200 | 200/0.5/200 | 250/0.5/250 | |
Breaking strength (kN/m) | 5.0 | 7.5 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | |
Elongation at break (%) | 300~100 | |||||||
CBR Mullen burst strength (KN) | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | |
Vertical permeability coefficient (CM/S) | K*10-11~13 | |||||||
Hydraulic pressure (MPa) | 0.4~0.6 | 0.6~1.0 |
Features
FAQ
What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in
civil engineering to stabilize and reinforce slopes and soil under
or next to roads, railways, dams, water reservoirs etc.. They can
be easily applied which minimizes the time of construction, as well
as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes,
Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Hydraulic
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs,
Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection
against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface
Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
