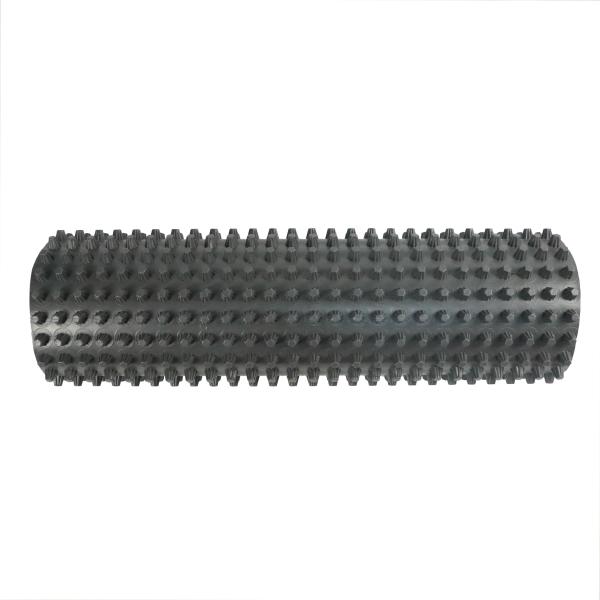

HDPE Dimple Drainage Cell 30mm Drainage Membrane Drainage Board
Product introduction
Drainage Board with dimple is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.
Technical parameter
| Plastic drainage board | ||
| item | Specification | |
| Tension at 10% elongation (N/100mm) ≥ | 350 | |
| Maximum pulling force (N/100mm) ≥ | 600 | |
| Elongation at break /% ≥ | 25 | |
| Tear performance/N ≥ | 100 | |
| Compression performance | Maximum strength when compression rate is 20%/KPa ≥ | 150 |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Heat aging | Tensile retention at 10% elongation≥ | 80 |
| Maximum tensile retention rate/(N/100mm) /% ≥ | 90 | |
| Elongation at break retention rate /% ≥ | 70 | |
| Maximum strength retention rate when the compression rate is 20% ≥ | 90 | |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ | 10 | |
Landscape engineering, garage top greening, roof garden, football field, golf course, beach project.
Municipal engineering, road base, subway, tunnel, landfill.
Construction engineering, upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation.Traffic engineering, highway, railway basement, dam and slope
|
|
