    PP Woven Geotextile Geo Bag Geotube Sludge Dewatering Waterproof

    Ask Lasest Price
    Brand Name : OEM
    Model Number : geotube
    Certification : ISO certificate
    Price : USD0.33-USD3.08 per square meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10, 000 Square Meters Per Day
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    PP Woven Geotextile Geo Bag Geotube Sludge Dewatering Waterproof

    Sludge Dewatering Dewatering PP Woven Geotextile Geo Bag Geotube

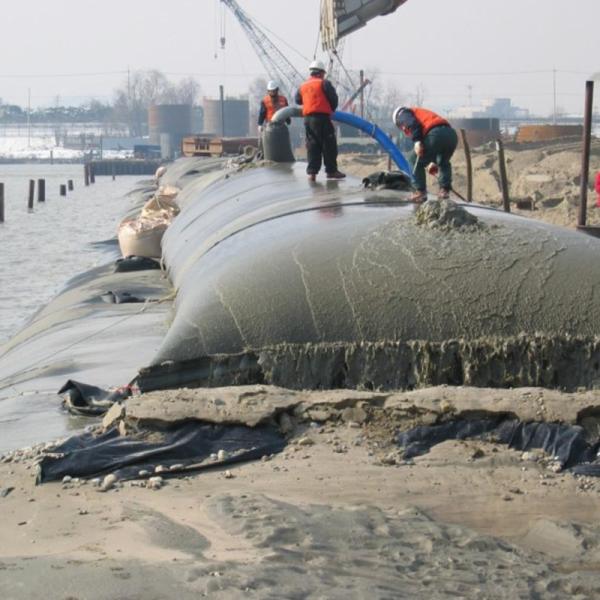

    Geotube dewatering containers are supplied to site and placed into position. Sludge which is treated with specialist polymers is then pumped into the containers and the clear effluent water is then drained leaving the solid remains within the container. When full the containers can be disposed at a landfill or the solids removed and land-applied.

    This simple but effective process makes Geotube dewatering containers ideal for the pulp and paper industries for primary and secondary lagoon cleanout and for processes to remove tailings, coal sludge and other minerals. Geotube dewatering containers have also been used for water and wastewater treatment dewatering to provide a reduction of up to 85% to 90% in BOD and in agriculture to efficiently manage waste in the dairy, poultry and other agricultural industries.

    ItermUnitStandardIndex
    HT500HT750HT1000
    Tensile StrengthRadial DirectionKN/MISO 10319-201585130220
    Zonal DirectionKN/MISO 10319-2015115120200
    Elongation at BreakRadial Direction%ISO 10319-2015131213
    Zonal Direction%ISO 10319-2015888
    Joint Tensile StrengthKN/MISO 10319-201590100170
    CBRKNGB/T14800-201091520
    Dynamic PerforationMMGB/T17630-19988108
    Effective Aperture(O90)MMGB/T14799-20050.450.4/0.280.45
    Permeability(Q50)L/m2/sGB/T15789-2005351418
    UV Resistance%ASTM D4355-2014908585

    APPLICATIONS

    • Municipal wastewater treatment plants
    • Marine remediation
    • mineral processing
    • Power & utility
    • Pulp & paper
    • Light industrial
    • Agriculture including the dairy industry, piggeries and abattoirs
    • Aquaculture

    ADVANTAGES

    • High flow rate allows residual materials to dewater, whilst containing solids
    • Custom fabricated with seaming techniques that withstand pressure during pumping operations
    • TenCate pioneered the dewatering technology, spending years perfecting the technology and patenting circumferential seaming (which provides excellent strength for very large tubes under high pumping pressure)
    • Supported by design advice and guidance on polymer use for your sludge
    • Thousands of dewatering projects around the world have used Geotube units

    PS: The first step is to fill, high strength and permeable geotextile bag body needed to make into actual, then filling slurry into the bag.

    PS: The second step is drainage, because the geotextile that makes up the bag has tiny holes that trap it in the mud, solids can also discharge water from the mud, which can effectively reduce the volume of inclusion in the bag body,The bag body can be repeatedly filled until the allowable height of the bag material is reached, and the discharged water can be reused.
    View FilePS: The third step is consolidation. After repeated filling and drainage, the fine particles left in the bag body will gradually consolidate due to drying.
