Sludge Dewatering Geotextile Geotubes Woven Geotube Geotube for Beach
Product Description

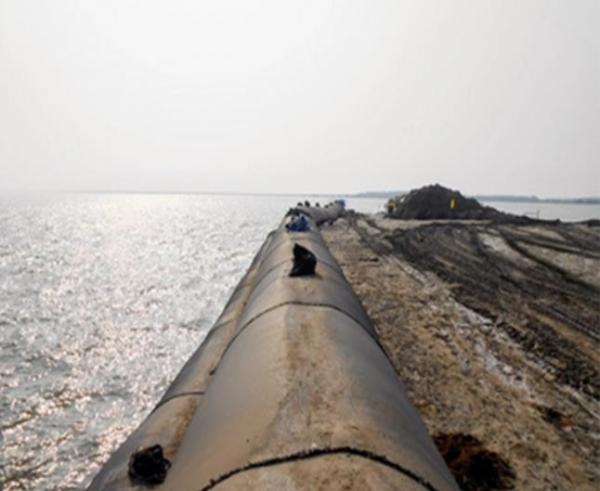

Geotextile Tube is one of the most effective components that are most usually used in protective structure of waterproof erosion. Soft mattress is covered to the places where water flows to reduce the impact energy of water flow and protect soil particles from being flown away by water flow by means of its filtration function, thus, ensuring the stability of soil mass.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
Notes:
1- During pumping, the elevation or height of the tube needs to be
monitored to prevent ruptures. Typically, keep the height to be 80%
is more a optimum.
2- The sands gathered the most at the entrance of port , so adjust
the sand concentration at the proper time to assure the sands
depositing smoothly.
3- To fill the tube to its required height, the designed height
should be equal or greater than the half of the diameter of
geotextile tube.
4- The sand concentration of the dewatered material shoul.
