PP Geotube Marine Construction Shoreline Restored with Woven Geotextile Sludge Dewatering Geotube Geomaterial
Product Description

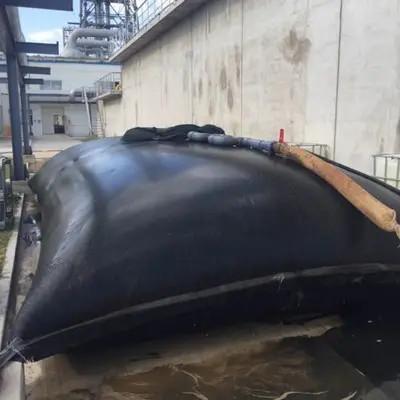

Geotube is prefabricated using high strength and quality seaming techniques into tubular, bag-like, or other forms with filling ports or other provisions for site filling. The containers are custom sized to save land space and are ideal for areas where space is a constraint. Geotube is designed to optimize the solids retention and effluent discharge rate and quality making it a highly efficient and environmental friendly solution for various sludge dewatering applications.
| Item | Unit | Testing Standard | Technical Parameters | ||
| GT70X95B | GT70X95 | ||||
| Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
| CD | KN/m | ISO 10319-2015 | 105 | 115 | |
| Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
| CD | % | ISO 10319-2015 | 8 | 8 | |
| Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
| Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
| Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
| Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
| UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 | |
Product Features:
Highly effective technology that produces high volume reduction and retention of solids
High effluent discharge rate with clear filtrate that can be recirculated through the system
Custom-sized containers saves expensive and limited land space
Easy removal and disposal of solids
|
|
