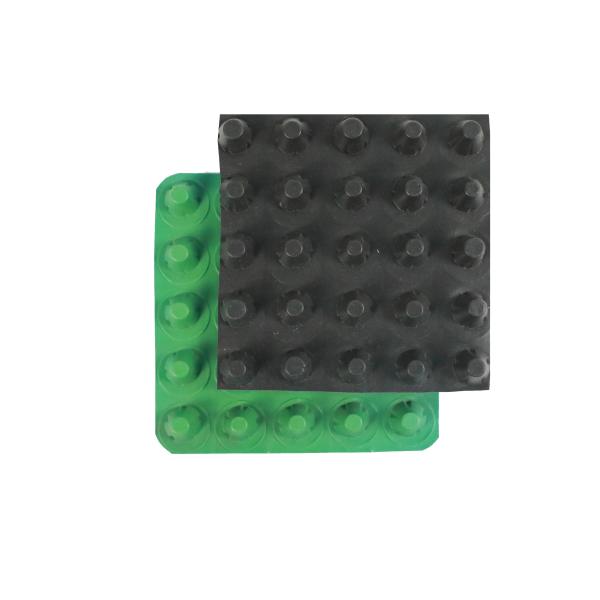

    HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing

    Ask Lasest Price
    Brand Name : zhongloo
    Model Number : Drainage Board
    Certification : CE/ISO9001/ISO14001
    Price : USD 1.36-1.88per square meter
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 60000 square meters per day
    Delivery Time : 8-12 days
    • Product Details
    • Company Profile

    HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing

    HDPE Dimple Plastic Drainage Board For Construction Material And Civil Material


    Product Description

    HDPE water drainage board also call plastic drainage sheet is a type of green roofing and foundation driange systems which are drained by a special molding plastic sheets. Water is retained and drained off within dimple on the upper sides of the drainage board; excess water spills over the edges of the plates and is carried off from the roof or foundations. The plastic or HDPE drainage board are made from HDPE(high-density polyethylene), using high pressure to inject plastic to form hole-lump-shaped shell, with stereo space and support level; in the top of the shell, covering with non-woven as filtering level for water percolation, water storage and water drainage.




    HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing


    Technical Parameters

    Plastic drainage board
    itemSpecification
    Tension at 10% elongation (N/100mm) ≥350
    Maximum pulling force (N/100mm) ≥600
    Elongation at break /% ≥25
    Tear performance/N ≥100
    Compression performanceMaximum strength when compression rate is 20%/KPa ≥150
    Extreme compression performanceNo break
    Low temperature flexibility-10℃ no cracks
    Heat agingTensile retention at 10% elongation≥80
    Maximum tensile retention rate/(N/100mm) /% ≥90
    Elongation at break retention rate /% ≥70
    Maximum strength retention rate when the compression rate is 20% ≥90
    Extreme compression performanceNo break
    Low temperature flexibility-10℃ no cracks
    Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥10

    Product Feature
    1. Convenient construction, easy maintenance and economy.
    2.Strong resistance to load and durability.
    3.The water can be partially stored and the remaining water can be drained quickly.
    4.It provides sufficient moisture and oxygen for plant production.
    5.Light weight, the roof heat insulation function strong.


    Product Application Range
    1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
    2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
    3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
    control and heat insulation layer, etc.
    4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
    5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.


    HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing


    FAQ
    1. What's your MOQ?
    A: Our MOQ is usually 1000sqm per color.

    2. What's your delivery time?
    A: It's about 14 days after we received the deposit.

    3. What's your payment terms?
    A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.
