| Brand Name : | zhongloo |
| Model Number : | Geosynthetic Clay Liner |
| Certification : | ISO9001 |
| Price : | USD 0.9-1.74 per square meter |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 60000 square meters per day |
| Delivery Time : | 8-12 days |
Waterproofing Construction Materials Bentonite Mat Geosynthetic Blanket Clay Liner
Product Description:

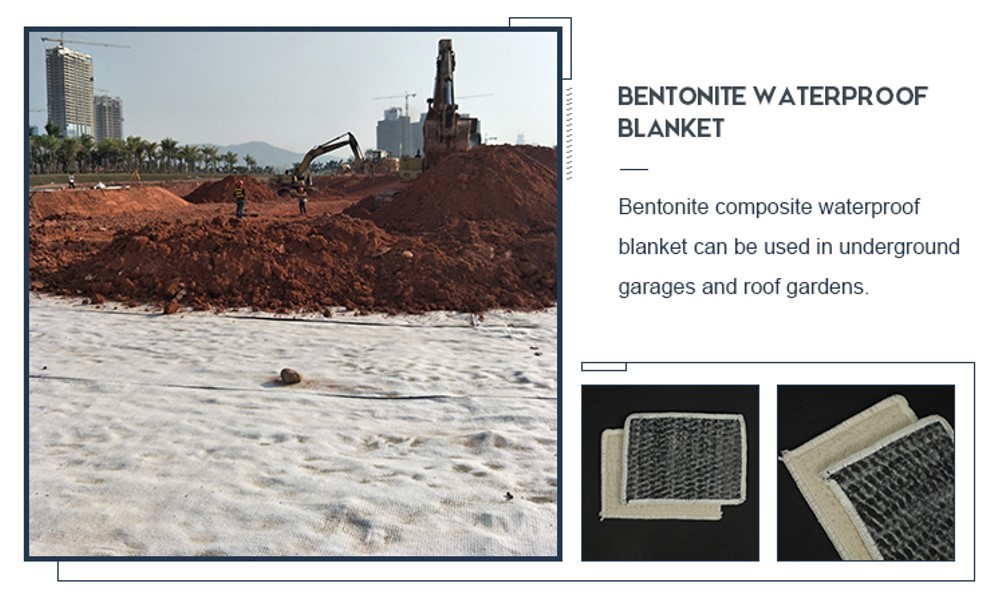

Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemicals yard.
Technical Parameters:
| Bentonite composite waterproof blanket | |||
| item | Specification | ||
| GCL-NP | GCL-QF | GCL-AH | |
| Unit area weight≥(g/㎡) | ≥4000 | ≥4000 | ≥4000 |
| Bentonite Swelling Index≥(mL/2g) | 24 | 24 | 24 |
| Blue absorption≥(g/100g) | 30 | 30 | 30 |
| Tensile Strength≥(N/100mm) | 600 | 700 | 600 |
| Maximum elongation≥(%) | 10 | 10 | 8 |
| Peel strength of non-woven fabric and woven fabric≥(N/100m) | 40 | 40 | _ |
| Peel strength of pe film and non-woven fabric ≥(N/100m) | _ | 30 | _ |
| permeability coefficient≤(m/s) | 5.0*10^-11 | 5.0*10^-12 | 5.0*10^-12 |
| Durability of bentonite/≥(mL/2g) | 20 | 20 | 20 |
Product Application:
1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering.
4. The reservoir seepage control engineering (pool).
5. Channel, the canal seepage control engineering.
6. The subway engineering.
7. The underground structure and waterproof engineering such as
underground foundation.
8. The tunnel engineering.
