Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Grid
HDPE Geocell Ground Enhancement Cellular System Grid Description:
Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.
WHAT IS THE ADVANTAGES?
Benefits of the Geocell Confinement System:
1). Reduce Fill Required – With the use of Geocell, fill quantity
can be reduced by up to 70% while maintaining or improving bearing capacity. This saves time,
transport, and material costs.
2). Eliminate Rutting – Prevent the lateral movement of infill.
Lower quality fill materials can often be used since they are contained within the cells.
3). Support Heavy Loads – Improve the bearing capacity of subgrade
soils and extend the life-cycle of the road.
4). Quick & Simple Installation - Easily installed without
specialized equipment or crews.
5). Utilize Local Fill – Most local soils can be used as fill
minimizing transportation costs and installation time.
6). Perforated Cells – Allow water to drain freely through
permeable aggregates.
| Material Properties | Unit | Test Method | |||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
| Seam Efficiency | % | 100 | GRI-GS13 | ||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | |||||

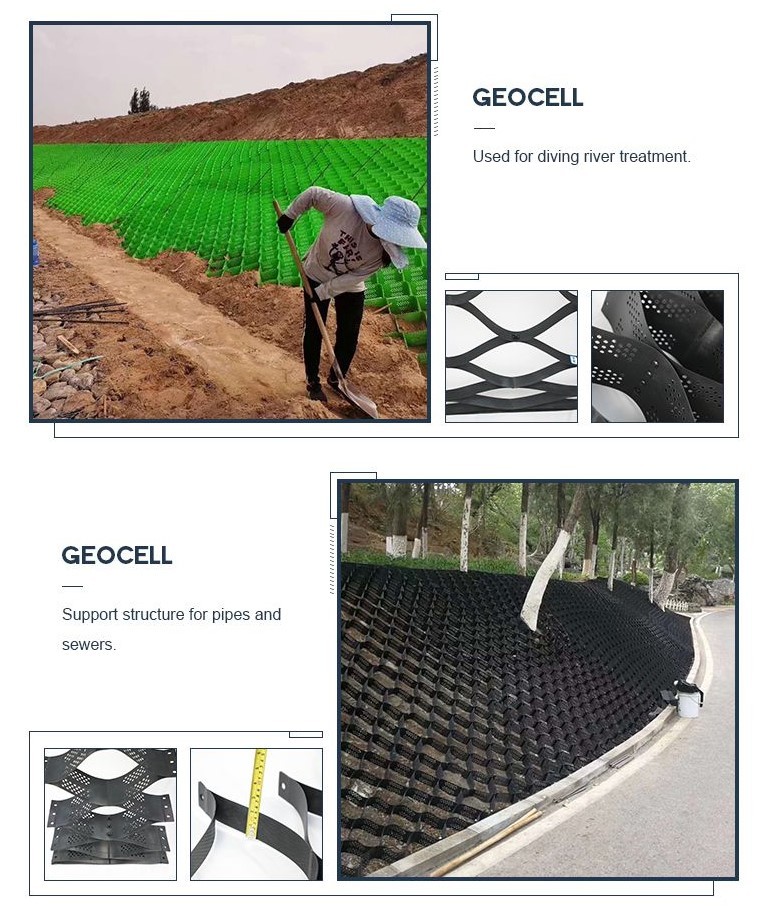

WHAT THIS PRODUCTS USED FOR?
1). To stable the roadbed of highway/railway.
2). To bear the load of dyke, retaining wall
3). To improve the watercourse of shallow river
4). To support the pipeline and sewer.
5). To be used as independent wall, wharf and breakwater, etc..
6). To be used for the regulation of the desert, beaches, river bed
and river bank
|
|
