High Strength1-4.5 Width Road Stabilization Fabric Woven PET Geotextile
Product Description:
PET Woven Geotextiles is made from polyester fibers, manufactured
from high tenacity polyester (PET)
yarns, our woven geotextiles have superior properties for
filtration, separation, reinforcement, erosion control
and drainage. Woven geotextile is for a variety of civil and
environmental applications including highways,
port facilities, reservoir, transport construction, waste and
chemical management ,subgrade engineering,
coast reclamation works, peninsula shoal engineering, etc.
Features:
1. High strength, low deformation.
2. Durability: steady property, not easy to resolved, air slaked
and can keep the original property long term.
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould.
4. Permeability: could control the sieve size to retain certain
permeability.
Product Paraments:
| Woven geotextile | |||||||||||
| item | Specification | ||||||||||
| 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | |
| Vertical Breaking strength(KN/M≥) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| horizontal Breaking strength(KN/M≥) | 24.5 | 35 | 45.5 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 175 |
| Elongation corresponding to standard breaking strength(%) | 30-35 | ||||||||||
| CBR Bursting strength(KN≥) | 2.00 | 4.00 | 6.00 | 8.00 | 10.50 | 13.00 | 15.50 | 18.00 | 20.50 | 23.00 | 28.00 |
| Equivalent aperture(mm) | 0.05-0.50 | ||||||||||
| Vertical permeability coefficient(cm/s) | k*(0.00001-0.01) Ps: k=1.0-9.9 | ||||||||||
| Width deviation rate(%) | -1 | ||||||||||
| Length and width deviation rate(%) | ±2 | ||||||||||
| Weight deviation per unit area(%) | -5 | ||||||||||
Properties:
1. High tensile strength, the maximum can be up to 1400KN/m.
2. Low elongation
3. Corrosion resisitance
4. Permeation of water
5. Easy to store and transport
6. Durability

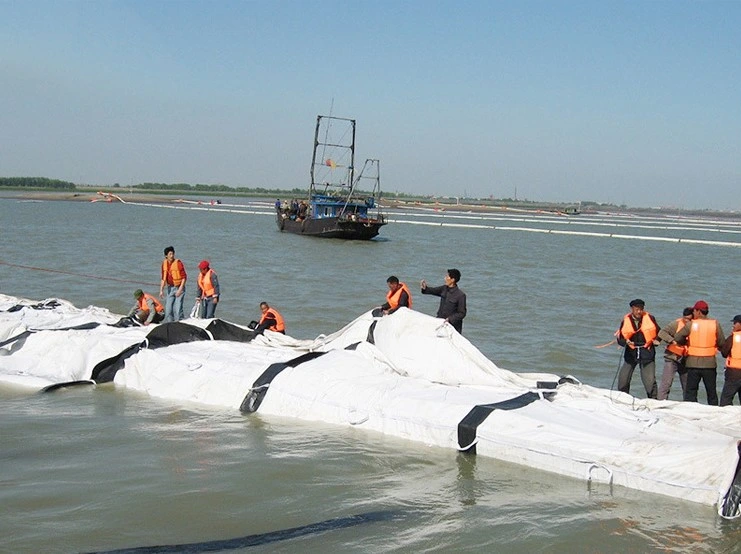

Application:
PET Woven Geotextiles is manufactured from high tenacity polyester
(PET) yarns and designed for landfill
liner reinforcement, embankment over soft soil, reinforced soil
slope, road and railway construction, the
foundation of marine structures, port facilities, reservoir, waste
and chemical management, peninsula
shoal engineering, etc.
|
|
