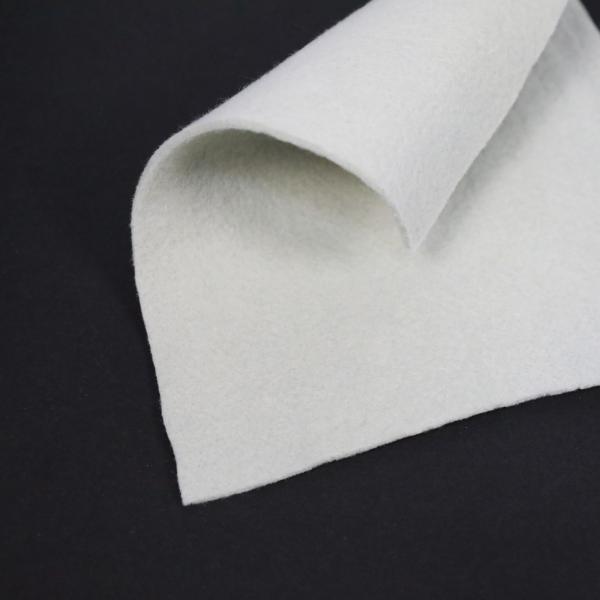

High Tensile Strength PP PE Non-Woven Geotextile For Construction
Product Description:
Staple fibers needle punched geotextile is made of PP staple fibers and processed by on carding cross-laying equipment and needle punched equipment.
Product Paraments:
| Staple fiber needle punched non-woven geotextile | |||||||||
| item | Specification | ||||||||
| Vertical and horizontal fracture strength(KN/M) | 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 |
| Elongation corresponding to standard breaking strength (%) | 20-100 | ||||||||
| CBR Bursting strength(KN) | 0.6 | 1 | 1.4 | 1.8 | 2.5 | 3.2 | 4 | 5.5 | 7 |
| Deviation rate of weight per unit area(%) | ±5 | ||||||||
| Vertical and horizontal tearing strength(KN) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.00 |
| Width deviation rate(%) | -0.5 | ||||||||
| Thickness deviation rate(%) | ±10 | ||||||||
| Vertical permeability coefficient(cm/s) | k*(0.001-0.1) Ps: k=1.0-9.9 | ||||||||
| Acid and alkali resistance(% ≥) | 80 | ||||||||
| Antioxidant performance(% ≥) | 80 | ||||||||
| UV resistance (% ≥) | 80 | ||||||||
Main Features:
1)anti-aging, the product has very high anti-ultraviolet radiation
ability, not easy to degradation.
2) High temperature resistance to up to 230ºC maintaining structure
stability and original physical properties.
3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil with the corrosion of
gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to
uneven and irregular bases.
Application:
Major functions: Separation, filtration, drainage, reinforcement, protection, and
liquid barrier
1) Filtration The filtration layer of the dykes, river canal, seacoast, concrete
slope, retaining walls. At the same time of preventing the clay
granule from passing, it allows the water and the gas pass through
freely.
2) Separation The isolation of the railway dregs and the roadbed, roadbed and the
soft base, surface of the airdrome and parking lot and the
groundsill, different dam materials. It isolates the soil and the
gravel of two kinds different granule pathway from the groundsill
or other buildings.
3)Adding muscle The highway, railway, soil-stone dam, breakwater, airport, backfill
soil of retaining wall, slope protection, etc in which distributes
the earth stress, prevents the side-displacement of the earth body
and improves the earth body stability.
4)Protection It prevents the bank from being washed out, protects the bank and
the bottom, prevents the water and soil from being washed away.
|
|
