| Brand Name : | OEM |
| Model Number : | Plastic HDPE Geocell |
| Certification : | ISO certificate |
| Price : | USD0.32-USD2.68 per square meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60, 000 Square Meters Per Day |
| Delivery Time : | 7-10 working days |
3D Geogrid Lattice Height 5-20mm Price Hdpe Geocell Plastic Gravel Grid
Plastic HDPE Geocell Description:
Geocell is a new type of high strength geosynthetic material which is popular at home and abroad. It is a three-dimensional meshcell structure formed by high strength welding of reinforced HDPE sheet material.Due to engineering needs, some need to be drilled in the diaphragm.During construction, it can be stretched into a network and filled with loose materials such as soil, gravel,concrete, etc., to form a structure with strong lateral restrictions and large stiffness.
HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
HDPE Geocell BENEFITS & FEATURES
1.It’s extractile,flexible to fold and convenient for
transportation.
2.It can be filled with soil, gravel,earth,macadam and so on when
being stretched into network.
3.It has light material, wear resistance, acid and alkali
resistance, anti aging.
4.It is anti-skid and anti-deformation and also has a higher
lateral limit, which can reduce the thickness of roadbed.
| Material Properties | Unit | Test Method | |||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
| Seam Efficiency | % | 100 | GRI-GS13 | ||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | |||||

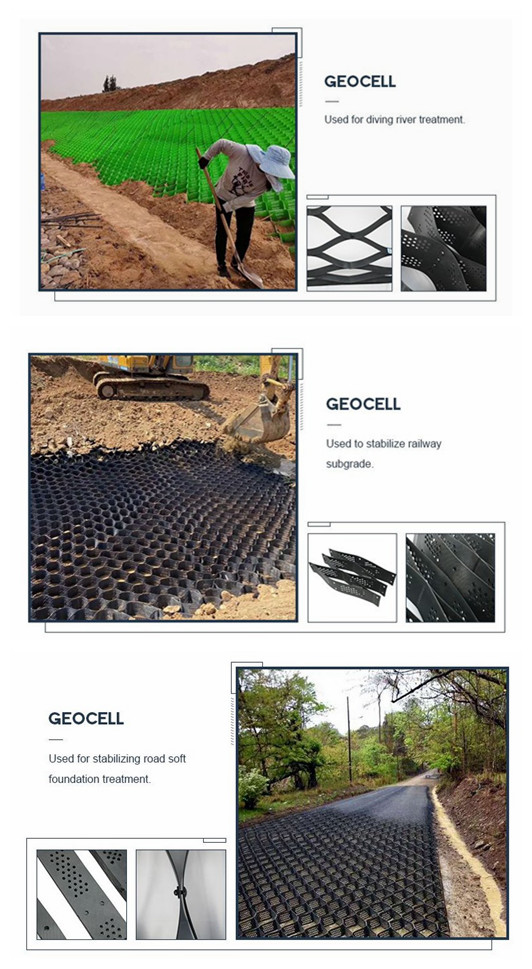

1.Load support: Solve unacceptable road, parking and yard surface problems.
2.Slope protection: Create a stable environment for long-term
sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels
exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining
walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems
caused by water contact, surface flow and wave action.
|
|
