    50mm-300mm Hdpe Plastic Geocell in road construction Ground Reinforcement

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Plastic HDPE Geocell
    Certification : ISO certificate
    Price : USD0.42-USD3.06 per square meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60, 000 Square Meters Per Day
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    50mm-300mm Hdpe Plastic Geocell in road construction Ground Reinforcement

    50-300mm Stabilizer Hdpe Geocell Gravel Grid For Ground Reinforcement Manufacture Price

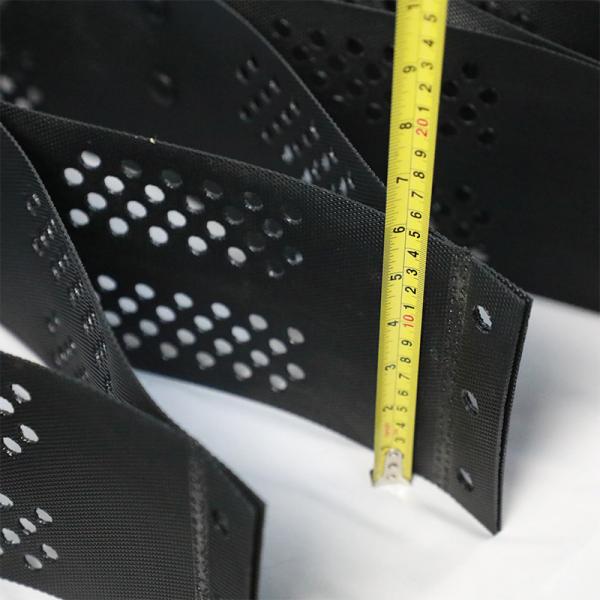

    Hdpe Geocell Gravel Grid Description:

    Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.


    Feature

    1, with flexible, transport can be folded, construction can be stretched into a network, filled with soil, gravel, concrete and other loose materials, constitute a strong lateral limit and stiffness of the structure.

    2, light material, wear resistance, chemical stability, light and oxygen resistance aging, acid and alkali resistance, suitable for different soil and desert and other soil conditions.
    3,higher lateral restrictions and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and dispersed load.
    4, Different engineering needs can be met by changing the height and welding distance of geotechnical chamber.
    5, flexible, small transport volume; The connection is convenient and the construction speed is fast.

    Technical Parameters:
    Material PropertiesUnitTest Method
    Cell Depthmm75100150200
    Polymer Densityg/cm30.935-0.965ASTM D 1505
    Environmental Stress Crack ResistanceHours>400ASTM D 5397
    Environmental Stress Crack ResistanceHours6000ASTM D 1693
    Carbon Black Content%1.5% - 2.0%ASTM D 1603
    Nominal Sheet Thickness Before Texturingmm1.27 -5%,+10%ASTM D 5199
    Nominal Sheet Thickness After Texturingmm1.52-5%,+10%ASTM D 5199
    Strip Puncture ResistanceN450ASTM D 4833
    Seam Peel StrengthN1065142021302840EN ISO13426-1B
    Seam Efficiency%100GRI-GS13
    Nominal Expanded Cell Size (width x length)mm320x287,475x508 etc
    Nominal Expanded Panel Size (width x length)m2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44


    Applications:


    1). To stable the roadbed of railway.
    2). To stable the roadbed of highway.
    3). To bear the load of dike or retaining wall.
    4). To the imporement of shallow river way.
    5). To support the pipeline and sewer.
    6). For the prevention of landslide by using geocell as a heavy-duty hybrid force retaining wall.
    7). To be used as independent wall, wharf and breakwater, etc.
    8). For the desert, beaches and the riverbed, the river bank's regulation.


    50mm-300mm Hdpe Plastic Geocell in road construction Ground Reinforcement

    FAQ

    1. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    2.what can you buy from us?
    Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

    3. why should you buy from us not from other suppliers?
    More than 20 years of production experience

    4. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW;



    Professional geosynthetics manufacturer
    Anhui Zhonglu Engineer Materials Co., Ltd
