Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction

Ask Lasest Price
Brand Name :	OEM
Model Number :	Plastic HDPE Geocell
Certification :	ISO certificate
Price :	USD0.58-USD3.06 per square meter
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60, 000 Square Meters Per Day
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction

Road Construction Subgrade Stabilization And Load Support HDPE Geocell

Road Construction Subgrade Stabilization and Load Support HDPE Geocell Description:

HDPE Geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with ASTM implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in sol,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.

HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.

Technical Parameters:

Material Properties	Unit						Test Method
Cell Depth	mm	75	100	150		200
Polymer Density	g/cm3	0.935-0.965					ASTM D 1505
Environmental Stress Crack Resistance	Hours	>400					ASTM D 5397
Environmental Stress Crack Resistance	Hours	6000					ASTM D 1693
Carbon Black Content	%	1.5% - 2.0%					ASTM D 1603
Nominal Sheet Thickness Before Texturing	mm	1.27 -5%,+10%					ASTM D 5199
Nominal Sheet Thickness After Texturing	mm	1.52-5%,+10%					ASTM D 5199
Strip Puncture Resistance	N	450					ASTM D 4833
Seam Peel Strength	N	1065	1420	2130	2840		EN ISO13426-1B
Seam Efficiency	%	100					GRI-GS13
Nominal Expanded Cell Size (width x length)	mm	320x287,475x508 etc
Nominal Expanded Panel Size (width x length)	m	2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44

FEATURES:
1. High Grade Raw Material to Ensure the Product Performance
Use virgin HDPE material to assure consistent, reproducible, and long-lasting performance.
2. Ultrasonic Wedling to Ensure the Strength of the Seam
Strong weld continually tested to project assurance.
3. Honeycomb Structure to Bearing Heavy Load
Prevent horizontal movement, and increase both shear strength and bearing capacity.
4. Proformed Hole to Allow Water to Get Through
Prevents erosion, and allow water flow.

HDPE Geocell Application:

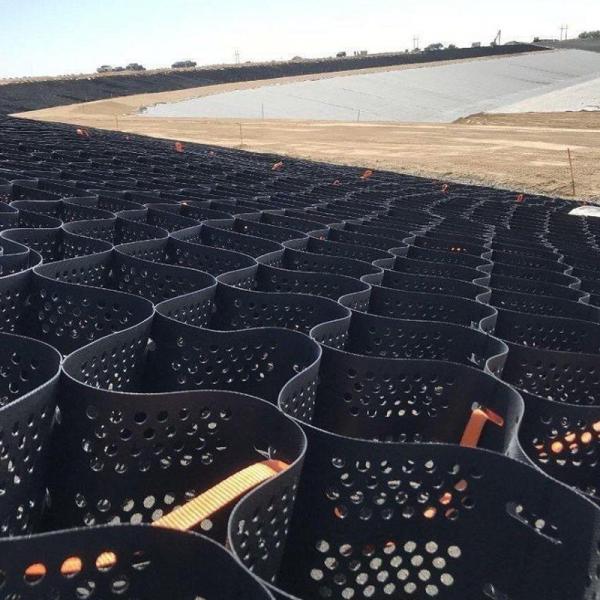

Gruound Stabilisation

Cellular Confinement Systems strengthen the aggregate infill,
thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support
layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements,
including: roads, railway substructure and ballast confinement;
working platforms in intermodal ports; airport runways.

Slope Pretection

The three-dimensional lateral confinement of Cellular Confinement
Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete
surfacing

Retaining Wall

Cellular Confinement Systems provide steep vertical mechanically
stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography

Geocell Packing:

Subgrade HDPE Driveway Gravel Stabilizer Mat Geocell for Road Construction

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.

3. why should you buy from us not from other suppliers?
More than 20 years of production experience

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
