Brand Name : | OEM |
Model Number : | geotube |
Certification : | ISO,SGS |
Price : | negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 600000 Piece/Pieces per Month |
Delivery Time : | 5-8 days |
MOQ : | 1pcs |
Geotube for Bank erosion protection geotube supplier geotextile tube Sludge Dewatering dewatering Bag Geotube
Product Description

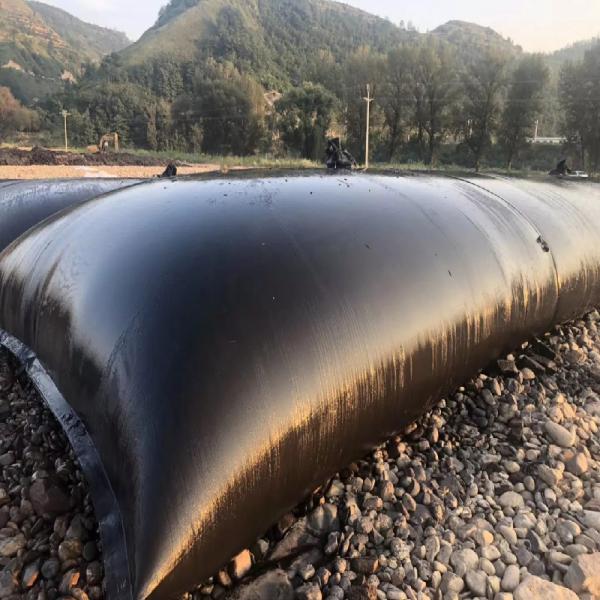

Geotextile tubes are made by PP woven fabric in a variety of sizes and lengths. They are in extra wide sizes with greater load distribution to resist punching and protect the embankment and foundation. Geotextile tubes are not only used to form shoreline structure including form temporary breakwaters, headlands, revetment on sand beach, also used in environment protection, like fill in the pollution silt, they let the water come out and retain the solid articles.
Item | Unit | Testing Standard | Technical Parameters | ||
GT70X95B | GT70X95 | ||||
Breaking strength | MD | KN/m | ISO 10319-2015 | 85 | 85 |
CD | KN/m | ISO 10319-2015 | 105 | 115 | |
Elongation of break | MD | % | ISO 10319-2015 | 13 | 13 |
CD | % | ISO 10319-2015 | 8 | 8 | |
Sewing Tensile Strength | KN/m | ISO 10321-2008 | 70 | 90 | |
Static Bursting Strength(CBR) | KN | GB/T 14800-2010 | 8 | 9 | |
Equivalent hole size(O90) | mm | GB/T 14799-2005 | 0.5 | 0.45 | |
Permeability(Q50) | L/m2/s | GB/T 15789-2005 | 50 | 35 | |
UV-resistance (500 Hours strength retention) | % | ASTMD4355-2014 | 90 | 90 |
1.PP or PET woven geotextile geotube is geosynthetic Containers
have been used as an alternative, sustainable solution for coastal
protection for more than 20 years. They have a smaller footprint
and lesser impact on the environment than hard structures, such as
rock and concrete, and are fabricated using specially engineered
materials, to meet durability and environmental requirements.
2.Property:
1).High tensile strength(70-200KN/m)
2).High seam strength(>80%)
We use the domestic leading seaming technology. The edge seams of
geotube have more strong tensile strength than the overseam sewing
technology, which is very good to prevent geotube be filled into
burst out.
3). High UV resistance(>90%/500h)
4). High resistance to acid and alkali (PH 2-13)
FAQ
Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as your requests.
It would be better if you could provide us with samples.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be
great,you can choose the instock goods. if not, don't worry, we can
take your order with our other clients' order to be produced
together. But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the
express fee?
A3. If you can accept our available sample,we can offer free sample
to you.
After confirming your order, the sample's freight cost will be
deducted from your order's total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for
the goods and send it to you.
If you find any production deficiencies,please contact us to
correct it.
![]() |
