    Asphalt Coated Fiberglass Geotextile Geogrid For Road Reinforcement

    Ask Lasest Price
    Brand Name : zhongloo
    Model Number : fiberglass geogrid
    Certification : ISO,SGS
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram,
    Supply Ability : 50000square meters/Day
    Delivery Time : 5-8 day
    • Product Details
    • Company Profile

    Asphalt Coated Fiberglass Geotextile Geogrid For Road Reinforcement

    Hot Sale Asphalt Coated Fiberglass Geogrid for Road Reinforcement Price

    1.Product Description


    Fiberglass Geogrid is made from excellent non-alkali fiberglass filament as the base material coated with adhesive by automatic woven technology. It has the characteristics of high strength, small deformation, no long-term creep deformation, good thermal stability and physical and chemical stability. It is applicable for various environmental soils and tall retaining walls in high-grade highways, and can effectively avoid the damage of machines rolling in construction progress.


    Product Name
    Fiberglass Geogrid
    Tensile Strength
    50/50 100/100 120/120 kN/m
    Mesh Size
    12.5x12.5, 25.4x25.4mm
    Roll Width
    1.5/2/2.5/3.95/5.95 m
    Roll Length
    50/100 m
    Standard
    ASTM, ISO

    Spec
    EGA
    30-30
    EGA
    50-50
    EGA
    80-80
    EGA
    100-100
    EGA
    120-120
    EGA
    150-150

    EGA
    200-200
    EGA
    300-300
    Mesh size (mm)
    25.4x25.4 or 12.5x12.5 or 50.8x50.8
    Breaking strength
    ≥(kN/m)
    warp direction
    30
    50
    80
    100
    120
    150
    200
    300
    across warp
    30
    50
    80
    100
    120
    150
    200
    300
    warp direction
    3
    across warp
    3
    Thernal tolerance(℃)
    -100~280
    Width(m)
    2/2.5/3.95/5.95 m

    2.Product Funtion

    Glass fiber grid has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance and long service life.

    3.Application

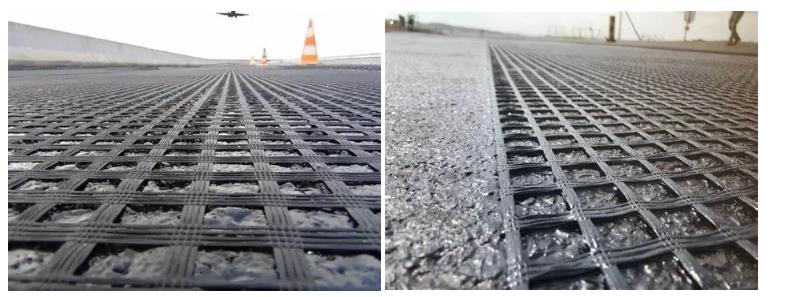

    1,Suitable for the reinforcement of all kinds of road, railway, airports.
    2,Apply to foundation reinforcement of permanent load-bearing such as large parking lot and dockyard.
    3,Applicable for slop protection of railway and road.
    4,Culvert enhancement.
    5,Suitable for the secondary reinforcement of the soil slope reinforced by the unidirectional stretching geogrid to further strength the soil slope and prevent soil erosion. 6,Mine and tunnel reinforcement.
