| Brand Name : | zhongloo |
| Model Number : | biaxial geogrid |
| Certification : | SGS |
| Price : | negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000m2/Day |
| Delivery Time : | 5-7day |
Geogrid Prices PP Plastic Biaxial Geogrid Price
Product Introduction
It is made of high molecular polymer, is extruded into sheet and then punched into regular mesh pattern, and finally stretched in longitudinal and transverse directions.
1.With high tensile strength in longitudinal and transverse
directions.
2.This structure can provide an chain system of more effective
force bearing and spreading for the soil.
Technical parameters
| MODEL | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||
| Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||
| Width (m) | 1-6m | ||||||||
| Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| (MD)Yield Elongation (%)≤ | 15 | ||||||||
| (CD)Yield Elongation (%)≤ | 13 | ||||||||
| Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 15 | 18 | 19 | |||
| Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 17 | 20 | 24 | |||
| Strength at 5% Strain (KN/m) ≥(MD) | 8 | 15 | 24 | 30 | 35 | 39 | |||
| Strength at 5% Strain (KN/m) ≥(CD) | 10 | 16 | 25 | 31 | 36 | 40 | |||
| Mesh Size (mm) | 30*30 | 36*38 | 34*36 | 34*36 | 40*40 | 40*40 | |||
| Remark | Special specifications can be customized according to the contract. | ||||||||

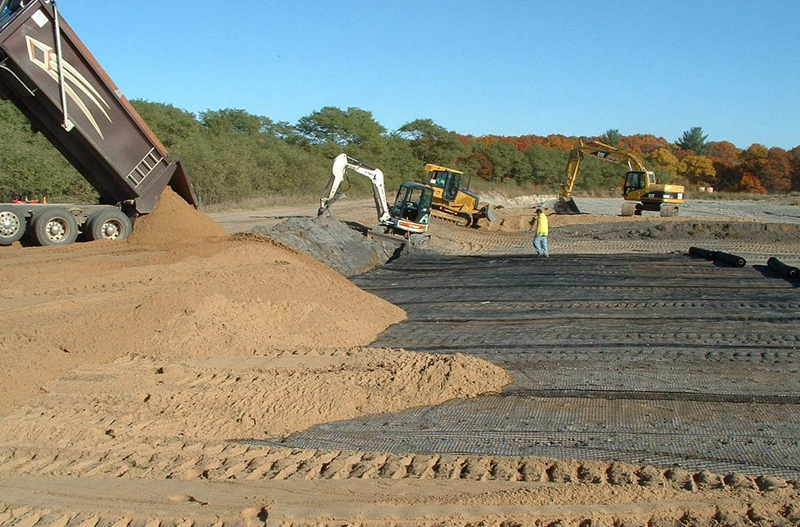

Application
1. It is applicable to subgrade reinforcement and Pavement
Reinforcement of various highways, railways and airports;
2. It is applicable to the foundation reinforcement of permanent bearing such as large parking lot and wharf freight yard;
3. It is applicable to the secondary reinforcement of the soil
slope after the reinforcement of unidirectional tensile geogrid to
further strengthen the soil slope and prevent water and soil loss;
4. Applicable to Culvert Reinforcement;
5. It is suitable for slope reinforcement of railway and highway;
FAQ
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 20 years.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
Please contact me for more info today!
Anhui Zhonglu Engineering Materials Co., Ltd.
|
|
