Warp Knitted Polyester Woven PET Biaxial Geogrid For Roadbase Reinforcement

Ask Lasest Price
Brand Name :	OEM
Certification :	ISO9001
Price :	US $0.80-3.6 / Square Meter
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 Square Maters/ Day
Delivery Time :	7-12 working days

Add to Cart

Product Details
Company Profile

Warp Knitted Polyester Woven PET Biaxial Geogrid For Roadbase Reinforcement

Roadbase Reinforcement Warp Knitted Polyester woven (PET) Biaxial Geogrid for reinforcement

Polyester Geogrid Description:
POLYESTER GEOGRID Polyester geogrid is a new kind of earthwork base material;which is used to strengthen the road surface and roadbed. Composing of high-strength polyester yarns,coated with an inorganic sizing agent.
Roadbase Reinforcement Warp Knitted Polyester Woven (PET) Biaxial Geogrid for Reinforcement

Polyester geogrid Features
1.High tensile strength low elongation
2.High tear - resistant
3.Strong combination with gravel and soil
4.Anticorrosive,anti-aging and alkali-resistant

Polyester warp knitted polyester geogrid adopts high strength polyester industrial filament, weaving warp mesh fabric through warp knitting, and processing it into geogrid by PVC coating. It is applied to the treatment of soft soil foundation and reinforcement of subgrade, dyke and other projects, so as to improve the quality of the project and reduce the cost of the project.

polyester geogrid Technical data:

Warp knitted polyester geogrid
item	Specification
Standard breaking strength≥(KN)	20	35	50	80	100	125	150
Vertical and horizontal ultimate tensile strength≥(KN/M)	20	35	50	80	100	125	150
Vertical and horizontal ultimate tensile strength elongation≤(%)	13					14
Tensile strength at 2% elongation≥(KN/M)	7	12	17	28	35	43	52
Tensile strength at 5% elongation≥(KN/M)	14	24	34	56	70	86	104

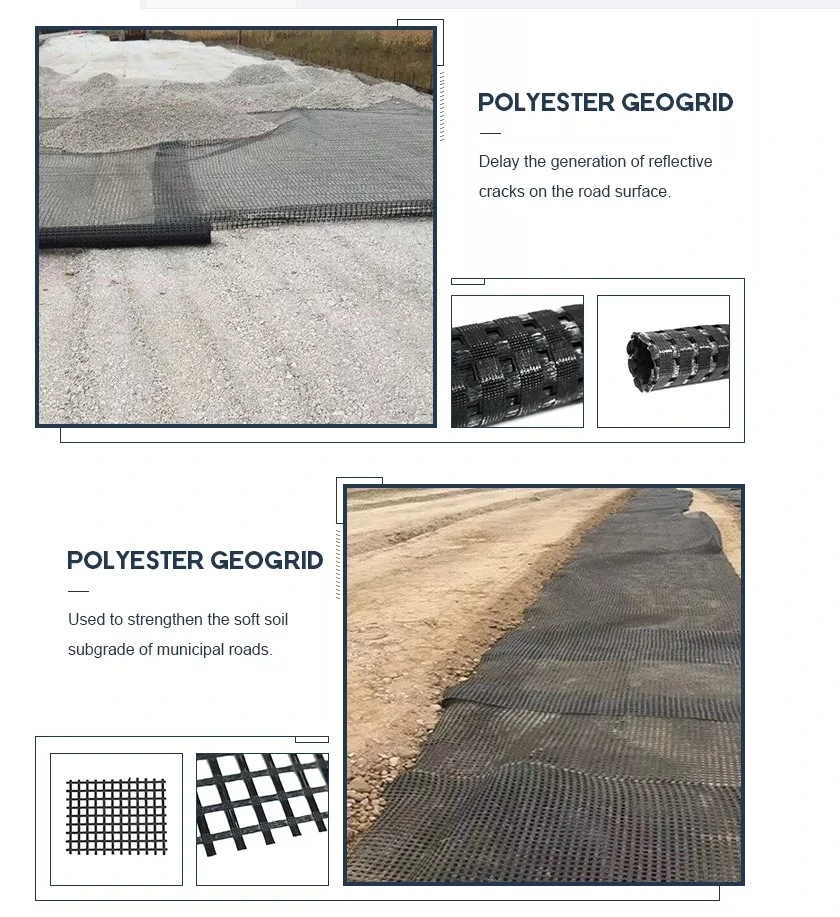

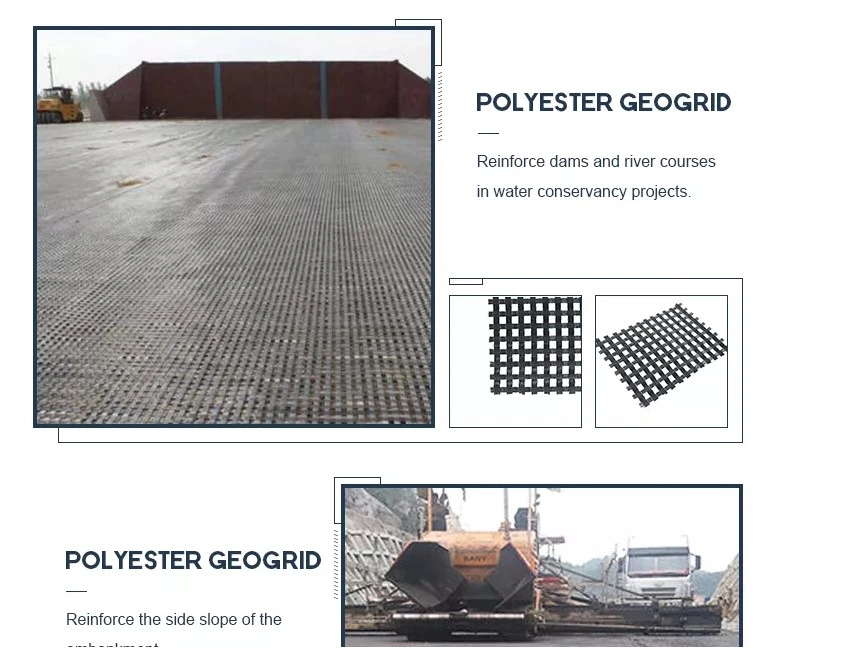

polyester geogrid Application

Roads, railways, water conservancy and other soft soil foundations are strengthened and reinforced.

1. Railway ballast protection: due to train vibration and wind and rain, the ballast is lost. Use a geogrid to wrap the ballast to prevent the ballast from losing and improve the stability of the roadbed;

2. Railway retaining wall: Geogrid is used to strengthen the retaining wall on the side of the railway, such as the platform and cargo platform in the railway station, which can extend the service life and reduce the maintenance cost;

3. Reinforced retaining wall: add geogrid beside the highway and in the vertical retaining wall to improve the bearing capacity of the retaining wall;

4. The foundation of the abutment is generally easy to sink downwards and the phenomenon of vehicle jumping occurs. Paving the geogrid under the foundation of the abutment can increase the bearing capacity and stabilize the abutment.

Polyester Geogrid Production process:
Roadbase Reinforcement Warp Knitted Polyester Woven (PET) Biaxial Geogrid for Reinforcement

Polyester Geogrid Packing:
Roadbase Reinforcement Warp Knitted Polyester Woven (PET) Biaxial Geogrid for Reinforcement

FAQ

Q:Can you send samples?

A:Yes,we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?

A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?

A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?

A: General within 3-7days after received the deposit.

Q: How to control product quality?

A: Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
