Product Features
1. Unidirectionally high tensile strength, good creep resistance, chemical nature is stable;
2. The friction coefficient with gravel is large.
uniaxial geogrid(PP)Technical Parameter (GB standard) | |||||||||
Item | Specification | ||||||||
Type | TGDG35 | TGDG50 | TGDG80 | TGDG110 | TGDG120 | TGDG150 | TGD200 | TGDG260 | TGDG300 |
Tensile Strength≥(KN/M) | 35 | 50 | 80 | 110 | 120 | 150 | 200 | 260 | 300 |
Maximum elongation≤(%) | 10 | ||||||||
Tensile strength at 2% elongation≥(KN/M) | 10 | 12 | 26 | 32 | 36 | 42 | 56 | 94 | 108 |
Tensile strength at 5% elongation≥(KN/M) | 22 | 28 | 48 | 64 | 72 | 84 | 112 | 185 | 213 |

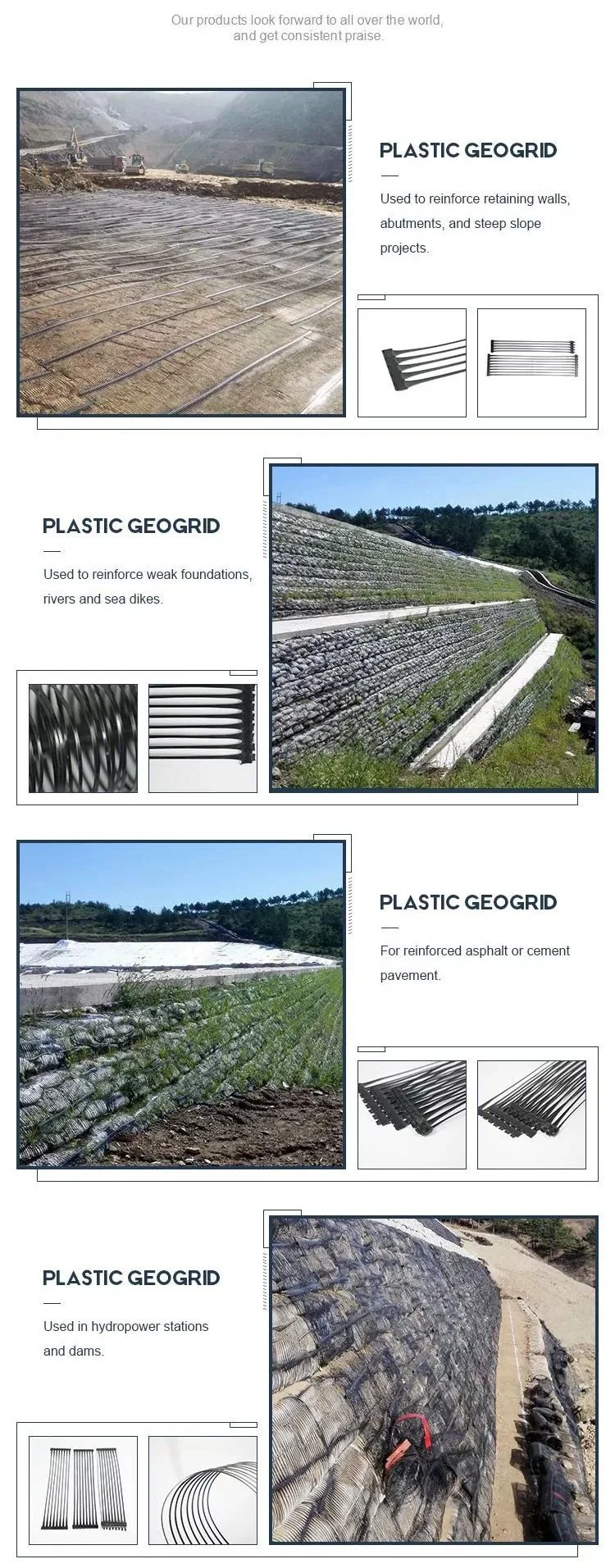

Product Application and Benefits:
Uniaxial geogris is kind of high strength geosynthetic. It has
extensive applications in dyke, tunnel, pier, highway, railway and
building.
Its main applications are follows:
1. Enhance roadbed distortion and crack caused by the loss of
roadbed materials;
2. Bear more alternate load;
3. Prevent roadbed distortion and crack caused by the loss of
roadbed materials;
4. Increase the self-supporting property of fill behind retaining
wall, decrease the earth pressure of retaining wall, save cost,
increase service life and reduce maintenance expenses;
5. Combine anchor sprouting concrete construction method to give
side slope maintenance, which not only saves investment by 30%-50%
but also reduces erection time by one time or above;
6. To increase geogrid in the roadbed and surface of highways can
reduce flexure, track and put off the flawing appearance by 3-9
folds and reduce the thickness of structural layer by 36%;
7. Simple and rapid construction will greatly reduce the
construction cost.
FAQ
1.What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely
widely in civil engineering to stabilize and reinforce slopes and
soil under or next to roads, railways, dams, water reservoirs etc..
They can be easily applied which minimizes the time of
construction, as well as they limit the resources and materials
necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes,
Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs,
Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Landfills,Landfill Capping,Protection against
corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface
Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
