    0.8mm - 2.0mm Plastic Dimpled Drainage Membrane Sheet HDPE Drain Board Membrane

    Ask Lasest Price
    Brand Name : zhongloo
    Model Number : ZL-PSB
    Certification : ISO9001
    Price : USD 0.54-1.12 per square meter
    Payment Terms : D/P, T/T, L/C
    Supply Ability : 10000 square meters per day
    Delivery Time : 8-12 days
    • Product Details
    • Company Profile

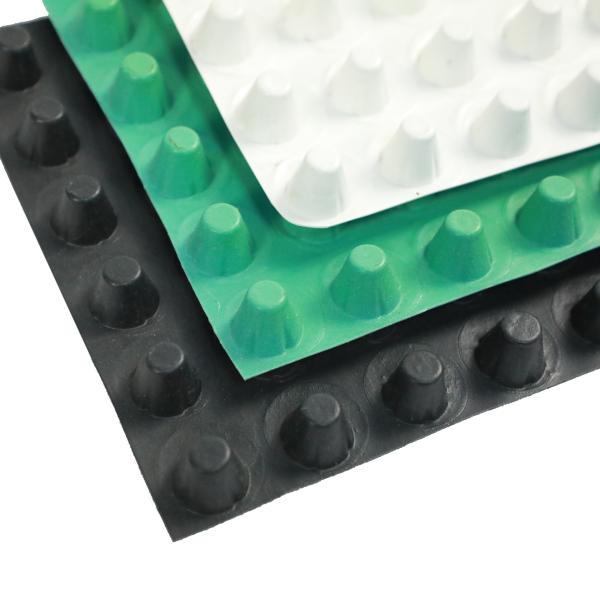

    0.8mm - 2.0mm Plastic Dimpled Drainage Membrane Sheet HDPE Drain Board Membrane

    Drain board Dimple plastic drainage sheet HDPE drain membrane

    Product introduction

    Dimple Drain board is made by 100% pure HDPE, the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.

    Technical parameter

    Plastic drainage board
    item
    Specification
    Tension at 10% elongation (N/100mm) ≥
    350
    Maximum pulling force (N/100mm) ≥
    600
    Elongation at break /% ≥
    25
    Tear performance/N ≥
    100
    Compression performance
    Maximum strength when compression rate is 20%/KPa ≥
    150
    Extreme compression performance
    No break
    Low temperature flexibility
    -10℃ no cracks
    Heat aging
    Tensile retention at 10% elongation≥
    80
    Maximum tensile retention rate/(N/100mm) /% ≥
    90
    Elongation at break retention rate /% ≥
    70
    Maximum strength retention rate when the compression rate is 20% ≥
    90
    Extreme compression performance
    No break
    Low temperature flexibility
    -10℃ no cracks
    Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
    10



    Product Feature
    1. Convenient construction, easy maintenance and economy.
    2.Strong resistance to load and durability.
    3.The water can be partially stored and the remaining water can be drained quickly.
    4.It provides sufficient moisture and oxygen for plant production.
    5.Light weight, the roof heat insulation function strong.
