| Brand Name : | zhongloo |
| Model Number : | steel plastic geogrid |
| Certification : | ISO,SGS |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000 Square Meters /Day |
| Delivery Time : | 7-10 work dys |
Product Description

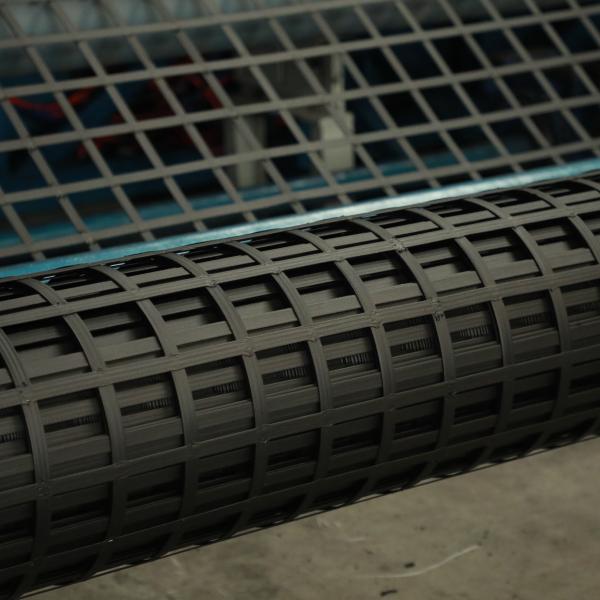

·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata's innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.
Technical index
| Project | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 |
| Vertically Limited-Rally (KN/m)≥ | 30 | 50 | 80 | 100 | 120 | 150 |
| Vertically Limited elongation ratio(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 38 | 63 | 81 | 98 | 125 |
High-strength steel-plastic biaxial( vertical and horizontal)
geogrid
| Project | TGSG30-30 | TGSG45-45 | TGSG60-60 | TGSG80-80 | TGSG100-100 | TGSG120-120 |
| Two-way Limit-Rally (KN/m)≥ | 30 | 45 | 60 | 80 | 100 | 120 |
| Two-way Limit elongation (%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 36 | 48 | 63 | 81 | 98 |
Product Features
1.High tensile strength - the yield strength of each linear meter in both vertical and horizontal directions can reach 20-150KN, which has been tested by the Product Quality Supervision and Inspection Center of the Ministry of Transportation, Railways, and Water Resources.
2.Small deformation - yield elongation of convex node steel plastic geogrid ≤3%; The yield elongation of convex node plastic geogrid is ≤10%.
3.High node strength - This product uses a fused cast convex node type connection to form a grid with longitudinal and transverse ribs. Its node strength is high, with a shear strength of ≤ 1.5MPa at welded grid nodes and an ultimate peeling force of ≥ 300N at convex grid nodes.
4.Long service life - plastic is a material for protecting high-strength steel wire, and it is also a force bearing material for plastic grid. It has chemical properties of acid, alkali and salt corrosion resistance, and has anti-aging and anti-oxidation properties through scientific formulation. Suitable for various permanent projects, with a service life of over a hundred years.
